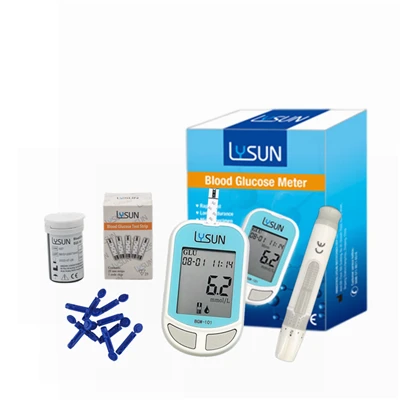

OEM Customizable Electronic Home Use Blood Glucose Meter

OEM Customizable Electronic Home Use Blood Glucose Meter

Working principle of our glucose meter: The electrons generated by the reaction of the enzyme and glucose are then used to read the number of electrons, which are then converted into glucose concentration readings. A small amount of blood sample is required for measurement, and the accuracy is high.

Product Introduction

Product Name
Blood Glucose Analysis Meter & Blood Glucose Test Strip
Model No.
BGM-102
Methodology
Electrochemistry Method
Analysis Item
Glucose
Measurement Range
Glu: 20~600mg/dL (1.1-33.3mmol/L)
Measurement Unit
mmol/L, mg/dL
Specimen
Fresh capillary or venous whole blood
Specimen Volume
10 μL
Test Time
in 5 seconds
Power Source
One 3.0V CR2032 lithium battery
Battery Life
6 months or approximately 1,000 tests
Memory
Glucose:200 records
Automatic Shut Off
1 Minute after Last Use
Meter Size
84.7MM * 52MM * 18MM
Meter Net Weight
50G
Meter Storage Conditions
0-55°C; ≤90% RH
System Operating Conditions
8-37°C;≤90% RH; Seal-Level ≤2000M
Meter Warranty Period
2 Years
Meter Shelf Life
5 Years
Test Strip Shelf Life
2 Years
Packing Specification (1 Set)
1 Meter
50 Test Strip
1 Lancing Device
50 Sterile Lancet (28G)
1 User Manual
1 Warranty Card
1 Code Chip
1 3.0V CR2032 Battery
(For international flight, the battery shall be taken out)


The Blood Glucose Monitoring System is not used for the diagnosis of the diabetes or test of newborns. To ensure accurate results from your Blood Glucose Monitoring System, please follow these guidelines:

• Read instructions before use.

• The Blood Glucose Meter should only be used with Test Strips which are the same trade mark as Blood Glucose Meter.

• For in vitro diagnosis only. Your Blood Glucose Meter can only be used for in vitro testing. • For self-testing use.

• Do not change your medication or treatment plan without the permission of doctor.

• For self-testers, contact your doctor when the blood glucose reading is abnormal against your experiencing symptoms.

• Keep out of reach of children.

• Please use the meter in the way suggested by the manufacturer, or the meter may be impaired.

Main Features of Blood Glucose Monitoring System

• Pre-suction siphon designed test strip, easy and convenient to use

1μL tiny blood sample

• Fast 5-second measuring time

Easy to read large LCD

• Automatic 7, 14 & 30 day averages

• Store up to 200 results with date and time
