Product Description
|
Product Name
|

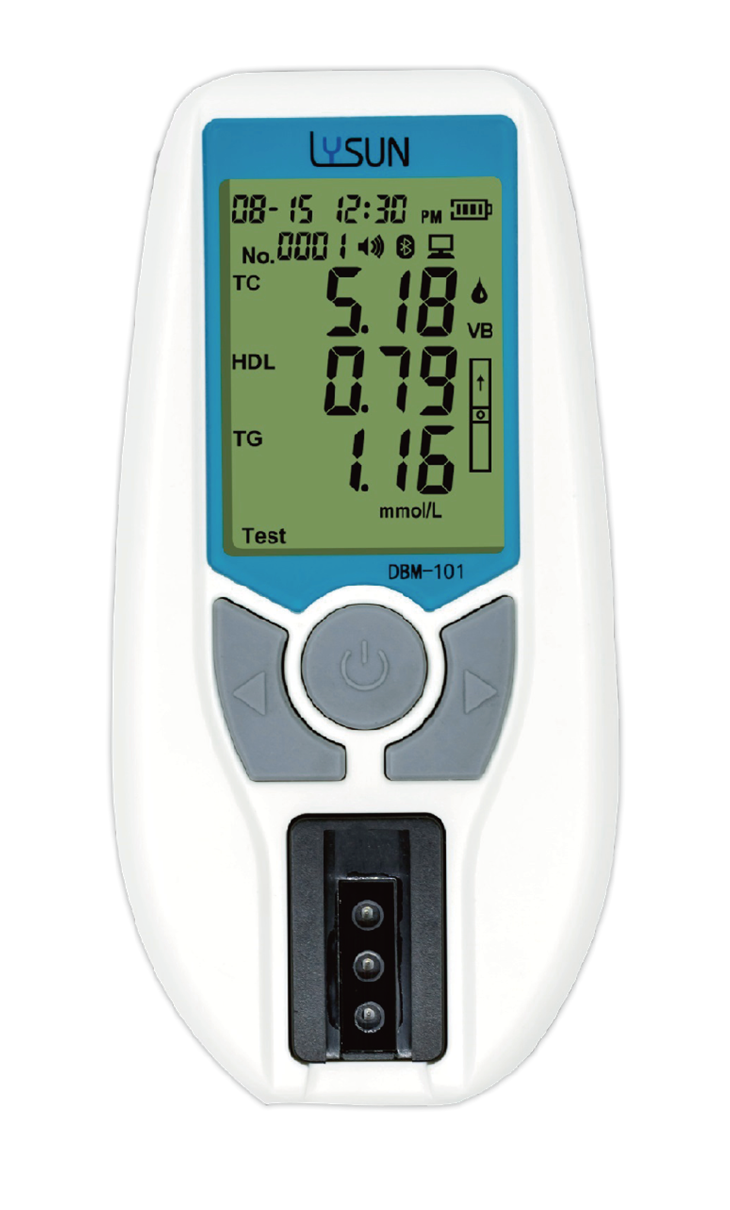

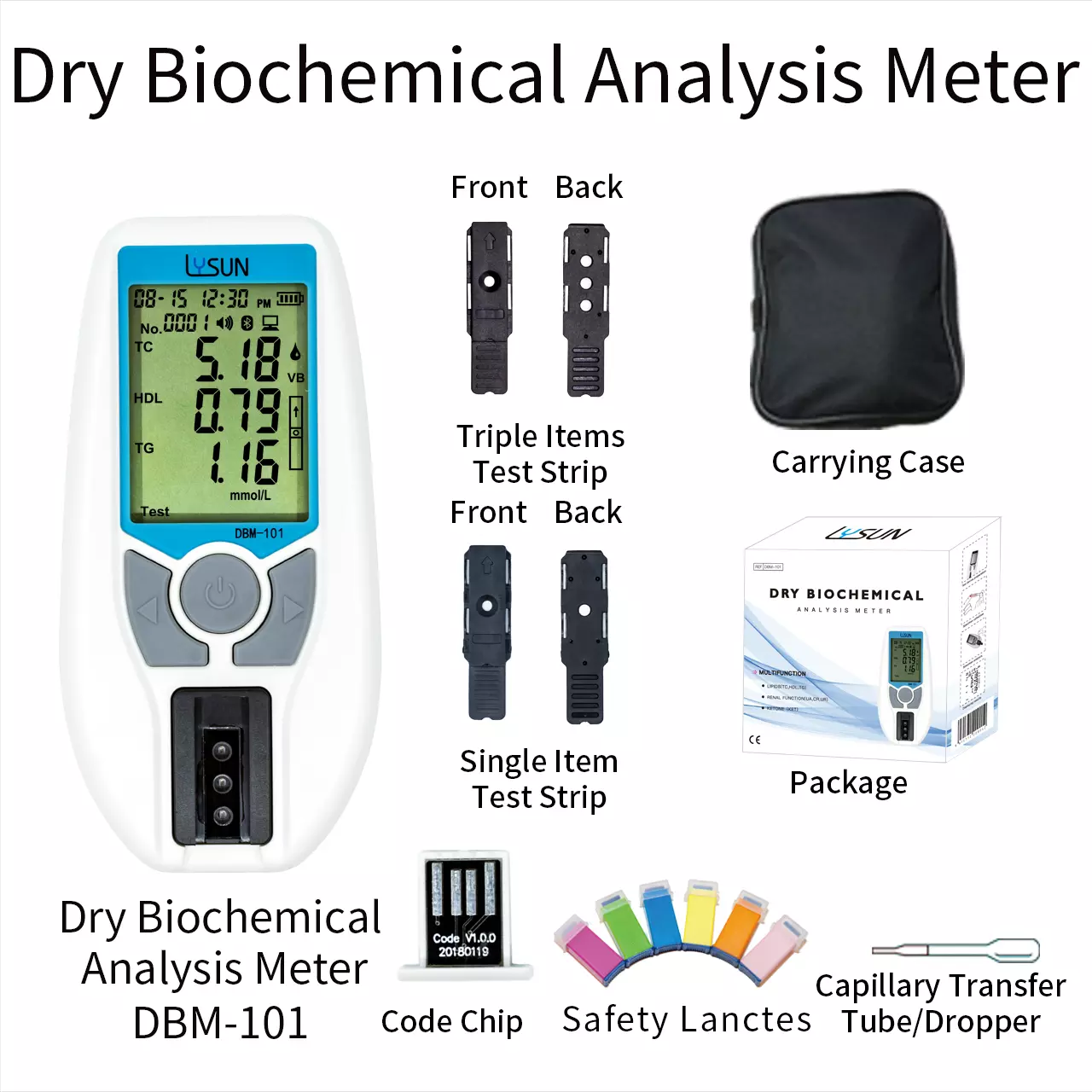

Dry Biochemical Analysis System
|
|
Model No.
|
DBM-101
|
|
Methodology
|
Reflectance Photometer
|
|
Analysis Item
|
Total Cholesterol, High Density Lipoprotein, Triglyceride
Uric Acid, Creatinine, Urea
|
|
Measurement Range
|
TL: 2.59-12.93mmol/L
(100-500mg/dL, 1mmol/L=38.66mg/dL)
HDL: 0.39-2.59mmol/L
(15-100mg/dL, 1mmol/L=38.66mg/dL)
TG: 0.51-7.34mmol/L
(45-650mg/dL, 1mmol/L=88.6mg/dL) UA: 0.090-1.200mmol/L (1.51-20.17mg/dL)
CR: 0.044-1.320mmol/L (0.50-14.93mg/dL)
UA: 0.90-40.00mmol/L (5.41-240.2mg/dL)
|
|
Measurement Unit
|
mmol/L, mg/dL
|
|
Specimen
|
Whole blood (peripheral and venous human whole blood), plasma and serum
|
|
Specimen Volume
|
Single Content Test: 10μL, 3-in-1 Test: 35μL
|
|
Test Time
|
Blood Lipid: in 120 seconds; Renal Function: in 300 seconds
|
|
Power Source
|
1200mAh Built-In Lithium Battery
|
|
Battery Life
|
After cycle charge 300 times, electric quantity reduce 30%
|
|
Memory
|
500 records
|
|
Bluetooth
|
Bluebooth to Sync Data with Phone or PC
|
|
Automatic Shut Off
|
5 Minutes after Last Use
|
|
Meter Size
|
135MM * 66MM * 19MM
|
|
Meter Net Weight
|
90G
|
|
Meter Storage Conditions
|
0-55°C; ≤90% RH
|
|
System Operating Conditions
|
10-40°C;≤90% RH; Seal-Level ≤2000M
|
|
Meter Warranty Period
|
2 Years
|
|
Meter Shelf Life
|
4 Years
|
Company Profile
Hangzhou Lysun Biotechnology Co., Ltd.
Hangzhou Lysun Biotechnology Co., Ltd. was established in 2018 and located in the beautiful city of Hangzhou Binjiang High-tech Zone. LYSUN is a biomedical high-tech enterprise specialized in the research and development, production and sales of in vitro diagnostic reagents and supporting POCT instruments.
As a professional POCT product manufacturer and service provider, LYSUN has obtained the EN ISO 13485:2016 Quality Management System Certificate and CE Certificate by TÜV SÜD.
LYSUN adheres to the concept of "Quality First, Customer First, Honesty and People-Oriented". Since the establishement, LYSUN has obtained 7 national software copyrights, 4 invention patents, 1 utility model patent and 3 appearance patents.
Lysun will continue to focus on the in-vitro diagnostic industry and committed to be a leading manufacturer of medical diagnostic products.
Certifications
Packing & Delivery
FAQ
Q: Are you a manufacturer or a trade company?
A: We are manufacturer.
Q: Where is you factory located? How can I visit there?
A: Our factory is located in Hangzhou, Zhejang Province, China.
All our clients, from home and abroad, are warmly welcome!
Q: Would you send me a sample to evaluate the quality before I order?
A: Yes, we send samples by international express.
Sample cost can be deducted in the bulk order payment.
Q: How does your factory control product quality?
A: We strictly follow the ISO:13485 QMS.
R&D team devoted to the technology development.
Skillful workers stick to the standard operation procedure. Quality Control department carefully inspect the production and package process.
Q: What about the MOQ?
A: MOQ:10sets for DBM-101 meter, 50boxes for test strip.
Sample evaluation order is also acceptable in the first time.
Q: What about the warranty?
A: Warranty for device: 2 years
Q: Do you support OEM and ODM.
A: Yes,we support OEM and ODM. MOQ: 500sets for DBM-101 meter, 1000boxes for test strip.
Welcome to consult for more details.
