The analyzer applies the principle of photochemistry and is used with Dry Biochemical Test strips (LPS-101, RFS-101, UAS-101, CRS-101, URS-101, TCS-101, TGS-101, HLS-101, KTS-101) .The whole blood sample to be tested is added into the sample area of the strip. In the process of rapid infiltration, blood cells are filtered out or dissolved. The substrate reacts with enzymes and chemicals in the reaction layer and lead to the color change, then the color intensity is proportional to the concentration of the substance.

Product Introduction

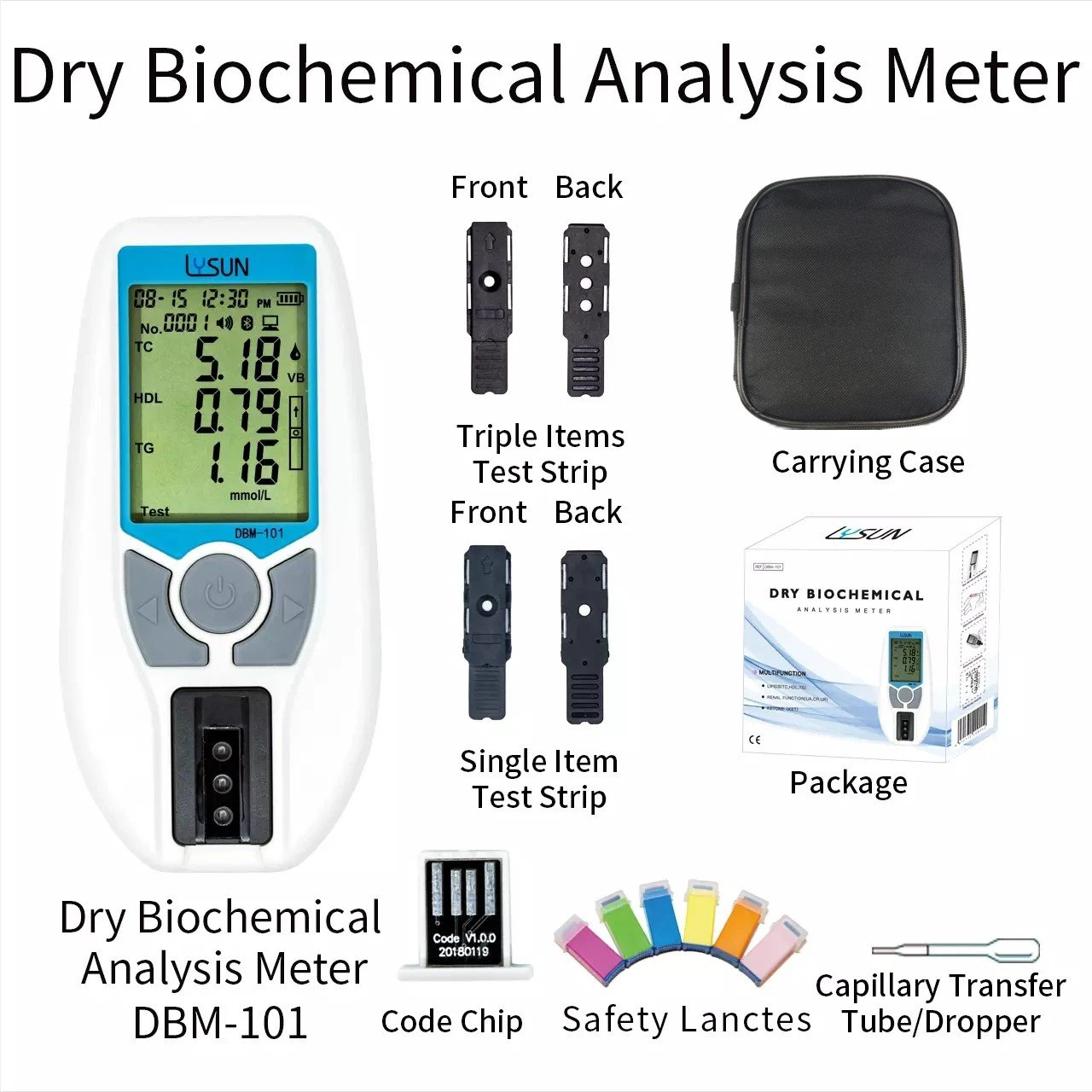

Product Name	Dry Biochemical Analysis System
Model No.	DBM-101
Methodology	Reflectance Photometer
Analysis Item	Total Cholesterol, High Density Lipoprotein, Triglyceride Uric Acid, Creatinine, Urea
Measurement Range	TL: 2.59-12.93mmol/L (100-500mg/dL, 1mmol/L=38.66mg/dL) HDL: 0.39-2.59mmol/L (15-100mg/dL, 1mmol/L=38.66mg/dL) TG: 0.51-7.34mmol/L (45-650mg/dL, 1mmol/L=88.6mg/dL) UA: 0.090-1.200mmol/L (1.51-20.17mg/dL) CR: 0.044-1.320mmol/L (0.50-14.93mg/dL) UA: 0.90-40.00mmol/L (5.41-240.2mg/dL)
Measurement Unit	mmol/L, mg/dL
Specimen	Whole blood (peripheral and venous human whole blood), plasma and serum
Specimen Volume	Single Content Test: 10μL, 3-in-1 Test: 35μL
Test Time	Blood Lipid: in 120 seconds; Renal Function: in 300 seconds
Power Source	1200mAh Built-In Lithium Battery
Battery Life	After cycle charge 300 times, electric quantity reduce 30%
Memory	500 records
Bluetooth	Bluebooth to Sync Data with Phone or PC
Automatic Shut Off	5 Minutes after Last Use
Meter Size	135MM * 66MM * 19MM
Meter Net Weight	90G
Meter Storage Conditions	0-55°C; ≤90% RH
System Operating Conditions	10-40°C;≤90% RH; Seal-Level ≤2000M
Meter Warranty Period	2 Years
Meter Shelf Life	4 Years

Storage and Handling

• Store optical verify strips in a cool, dry place. Store away from heat and direct sunlight.

• Transport and store in its closed canister within 2-30°C with less than 90% humidity.

• Replace the cap on the strip canister immediately after removing a strip. Expired strip may produce incorrect test results.

Q: Are you a manufacturer or a trade company?

A: We are manufacturer.

Q: Where is you factory located? How can I visit there?

A: Our factory is located in Hangzhou, Zhejang Province, China.

 All our clients, from home and abroad, are warmly welcome!

Q: Would you send me a sample to evaluate the quality before I order?

A: Yes, we send samples by international express.

 Sample cost can be deducted in the bulk order payment.

Q: How does your factory control product quality?

A: We strictly follow the ISO:13485 QMS.

 R&D team devoted to the technology development.

 Skillful workers stick to the standard operation procedure.
 Quality Control department carefully inspect the production and package process.

Q: What about the MOQ?

A: MOQ:10sets for meter, 50boxes for test strip.

 Sample evaluation order is also acceptable in the first time.
