Dry bioanalyzer
Dry bioanalyzer | |
Methodology | Reflectance Photometer |
Measurement Range | UA:0.090mmol/L~1.200mmol/L(1.51mg/dL~20.17mg/dL) CR:0.044mmol/L~1.320mmol/L(0.50mg/dL~14.93mg/dL) UR:0.90mmol/L~40.00mmol/L(5.41mg/dL~240.2mg/dL) TC:2.59mmol/L-12.93mmol/L(100mg/dL-500mg/dL) HDL:0.39mmol/L-2.59mmol/L(15mg/dL-100mg/dL) TG:0.51mmol/L-7.34mmol/L(45mg/dL-650mg/dL) KET:0.02mmol/L~6.00mmol/L(0.21mg/dL~62.46mg/dL) |
Specimen | Whole Blood(capillary and venous),plasma and serum |
Power Source | 1200mAh built-in lithium battery |
Battery Endurance | After cycle charge 300 times, electric quantity reduce 30% |
Units of Measurement | mmol/L, mg/dL |
Memory | 500 records |
Automatic Shut Off | 5 minutes after last use |
Meter Size | 135*66*19mm(L*W*H) |
Weight | 90g |
Meter Storage Conditions | 0-55℃；≤ 90% RH |
System Operating Conditions | 10-35℃；≤ 90%RH；altitude 2000m |
Test Strip Storage Conditions | 2～30℃;≤ 90% RH |
Warranty Period | 2 years |
Meter Shelf Life | 4 years |
Test Strip Shelf Life | 1 year |
Product Introduction

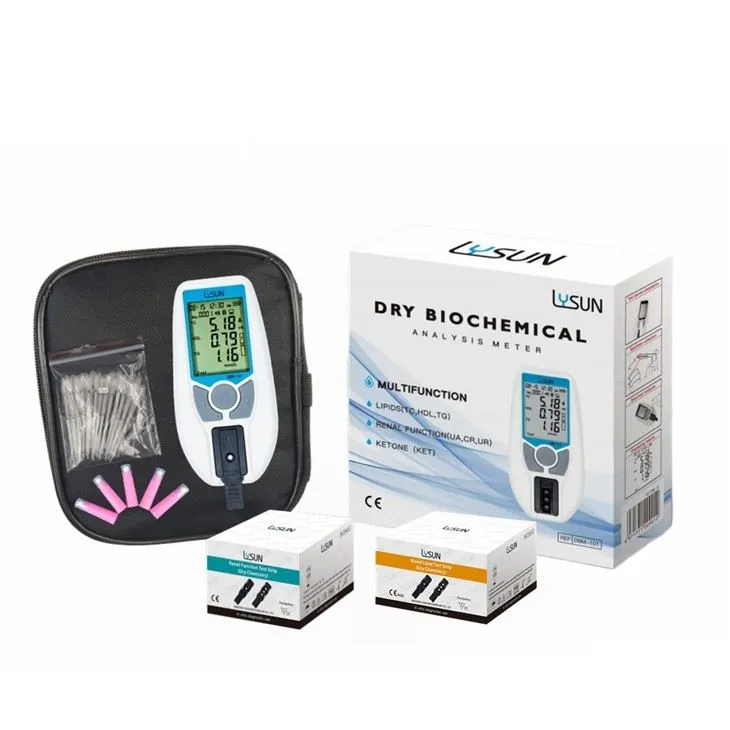

Brilliant Dry bioanalyzer is intended for the quantitative determination of Total Cholesterol (TC), High Density Lipoprotein Cholesterol (HDL),Triglycerides (TG), Uric Acid (UA), Creatinine (CR) and Urea (UR), Blood Ketone (KET) in capillary blood, venous whole blood, plasma and serum. Brilliant Dry bioanalyzer provides results. Brilliant Dry bioanalyzer can store up to 500 results and records.
Advantages:
Rapid Test Blood lipid in 120 seconds, Renal Function in 300 seconds
Mobil Application Easy management on phone APPs
Comprehensive Functions Integrate multiple tests in one meter
Program Update Automatically update meter program to latest version
Rechargeable Built-in 1200mAh Li-ion battery and support Long-Endurance
Bluetooth Use Bluetooth to sync data with phone and bluetooth printer conveniently
Optical Verify Strip Test
After entering the CTR Mode, the meter will display OPt. Press and then insert a optical verify strip into the Test Strip Holder.
Follow the direction of the arrows indicated on the strip. Ensure that the optical verify strip is inserted all the way. The optical check will start automatically. If the meter displays OH, the meter is normal. If the meter displays FL, the meter is not functioning properly. Note:
• The optical verify strip is intended to check the optical system.
• Allow the optical verify strips and the meter to reach operating temperature (10-35°C) prior to testing.
• The optical check should be performed under normal lab lighting conditions. Do not perform under sunlight or extreme lighting conditions. If the meter displays FL, check the optical verify strip for contamination or to check if it is damaged. If there are any visible signs of damage or contamination, discard the optical verify strip and retest using new optical verify strip. Remove the optical verify strip. The meter will return to the Initial Screen
FAQ:
1. Q: What about the MOQ?
A:MOQ is 10 sets for meter,50 boxes for test strips.
2. Q: Do you provide samples ?
A: Yes, we could provide the sample for you. However, the cost can be reduced in our later orders once we have our business cooperation.
3. Q: Would you have a discount if l have a large order?
A: Yes we could offer different discounts according to your order quantity.
